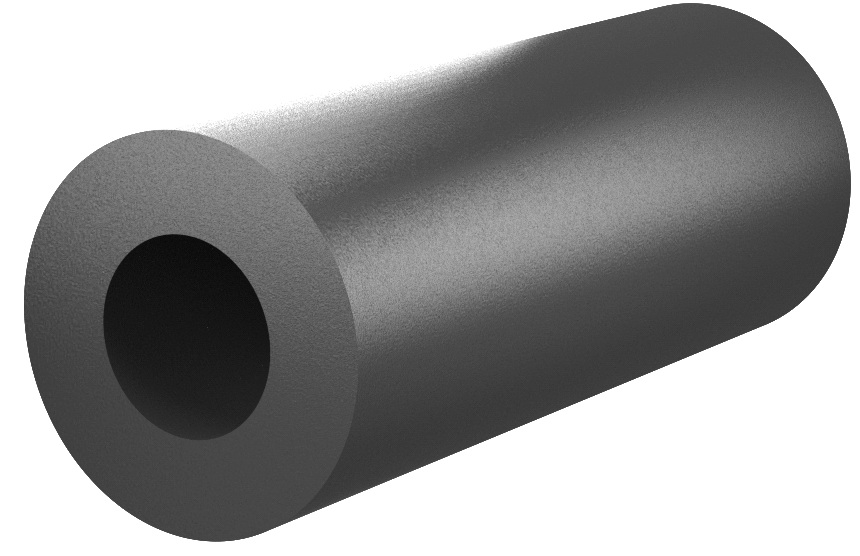

Cylindrical fenders are commonly used fenders that ensure safe and linear berthing for different kinds of vessels. They have the properties of low reaction force, small pressure surface, and reasonable energy absorption. They are an economical solution to protect most berthing structures and offer ease of installation
Types
Meridian produces this type of fender by means of a winding process up to a diameter from 150 to maximum 1600 mm. Meridian produces cylindrical bow & stern fenders from a very durable rubber.

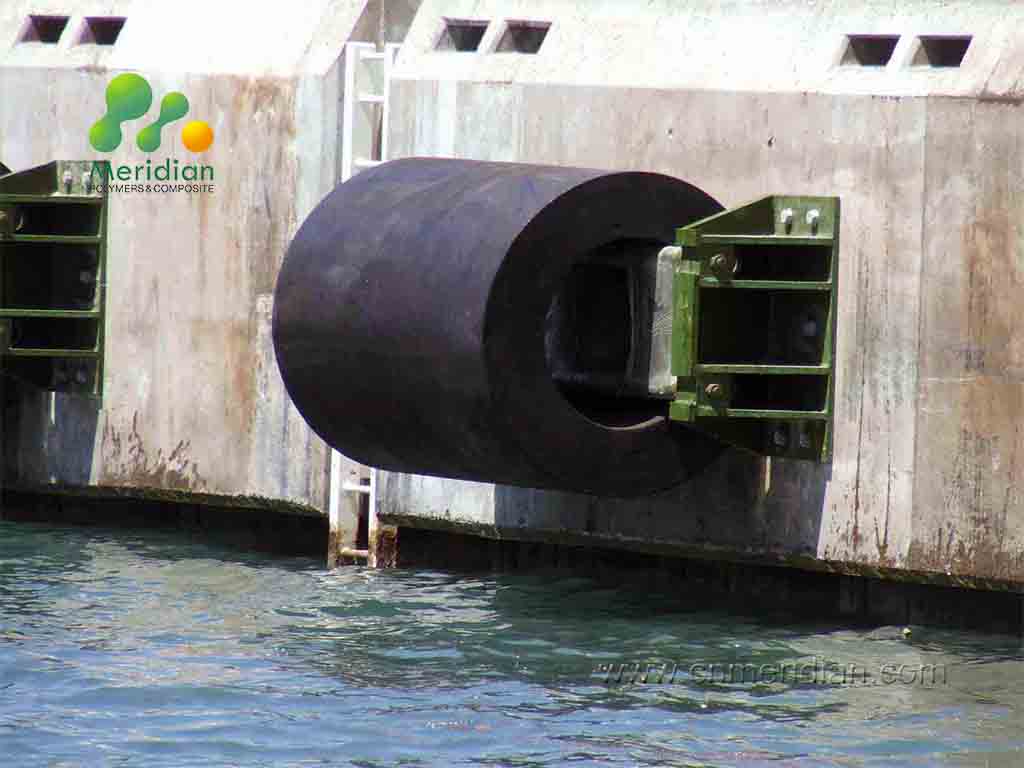

Installation

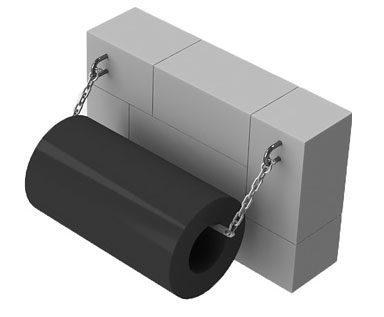

They are an economical solution to protect most berthing structures and offer ease of installation. If required they can be provided with tapered ends for better attachment to the ship and with grooves for additional attachment with chains or nylon straps. Connection plugs can be used to make longer lengths.
Applications
Bulk cargo berths
General cargo quays
RoRo and ferry terminals
Fishing and workboat berths
Pontoons and floating structures
Tug havens
The maximum diameter of this type of fender is 1600 mm.

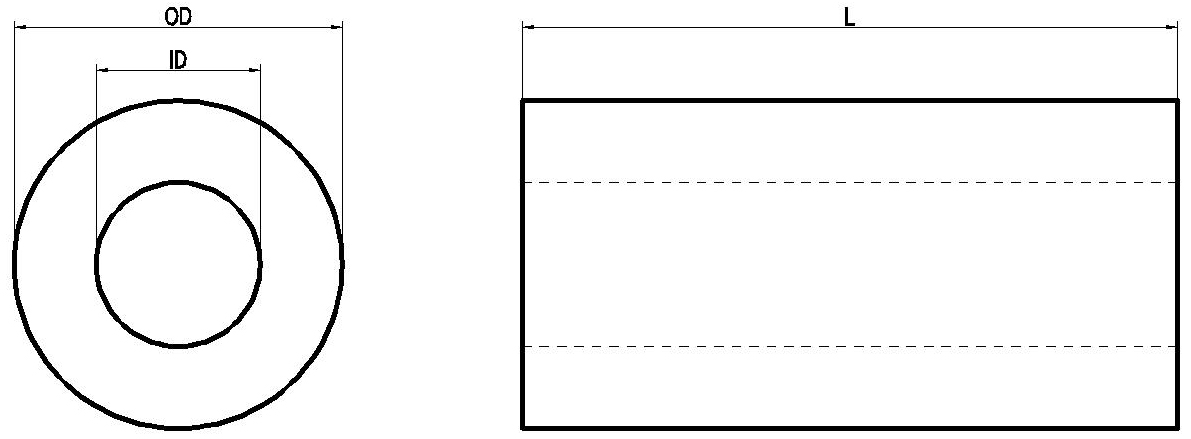

Unit: mm
| Type |
Outer Dia
(OD) |
Inner Dia
(ID) |
Length of Product |
Note |
| CY150 x L |
150 |
75 |
500~18000 |
Other sizes can be manufactured according to users’ requests |
| CY200 x L |
200 |
100 |
| CY250 x L |
250 |
125 |
| CY300 x L |
300 |
150 |
| CY400 x L |
400 |
200 |
| CY500 x L |
500 |
250 |
| CY600 x L |
600 |
300 |
| CY700 x L |
700 |
350 |
| CY800 x L |
800 |
400 |
| CY900 x L |
900 |
450 |
| CY1000 x L |
1000 |
500 |
| CY1100 x L |
1100 |
550 |
| CY1200 x L |
1200 |
600 |
| CY1300 x L |
1300 |
650 |
| CY1400 x L |
1400 |
700 |
| CY1500 x L |
1500 |
750 |
| CY1600 x L |
1600 |
800 |
