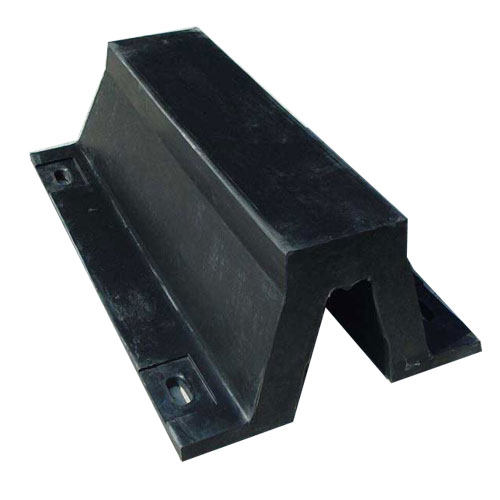

The Supper arch fender is also known as V-type rubber fender is a kind of marine rubber fender. They have strong and good shear performance and a simple one-piece design that requires low maintenance and has a long lifespan
Types

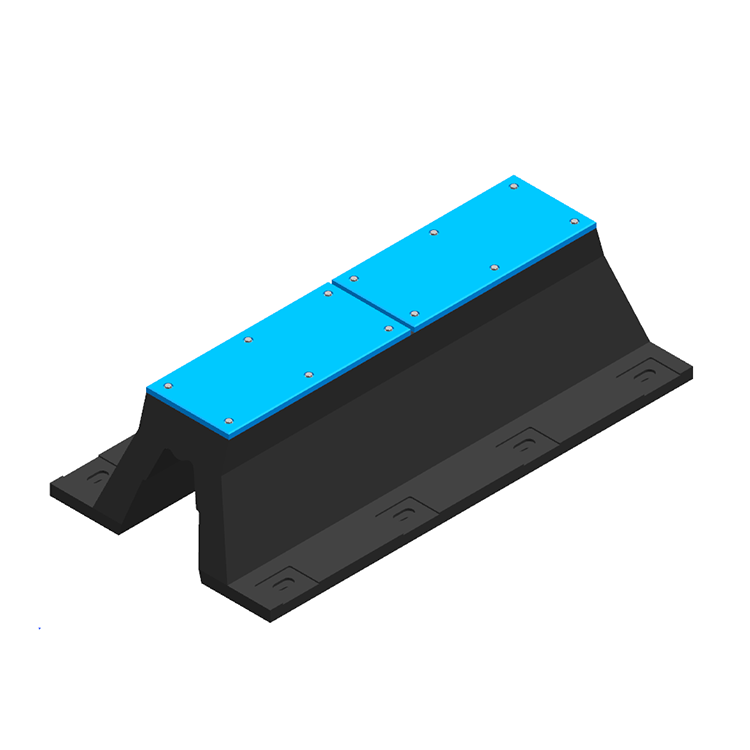

In addition to just the fender body, It could connects the front panel, UHMW-PE face pad installed outside of the front panel, which lowers the friction factor between vessel and fender to avoid the damage of vessel and raises the utility of fender life.
Installation
Supper arch fenders can be used with limited space or during situations with highly restricted conditions; they are simple and rugged, providing reliable and trouble-free service for a wide variety of berths even under the most severe conditions.
Applications
RoRo berths
General cargo
Workboat harbours
Barge and tug berths

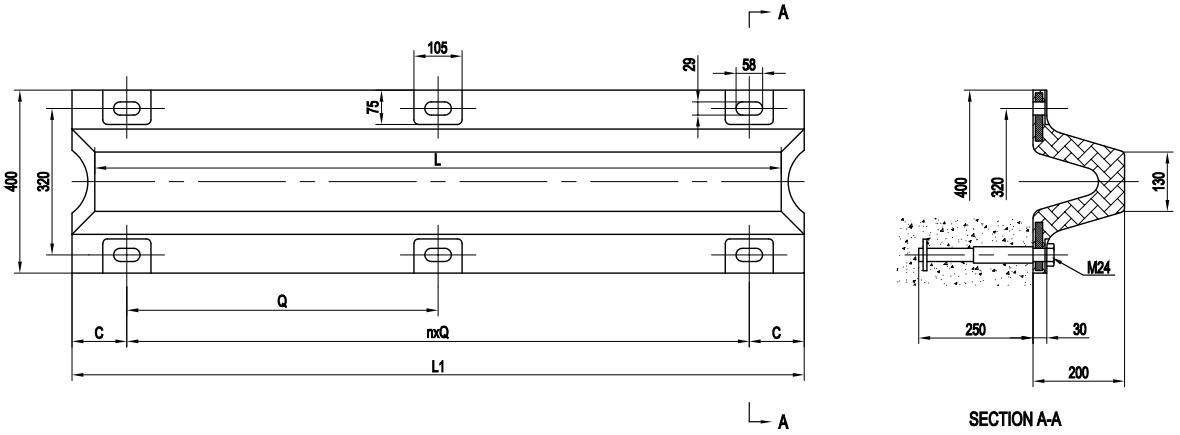

Specifications of Super Arch Fender SA200H
| No. |
Type |
L |
L1 |
C |
nxQ |
Srew |
Weight |
| 1 |
SA200Hx1000 |
1000 |
1100 |
120 |
1x860 |
M24 |
62kg |
| 2 |
SA200Hx1500 |
1500 |
1600 |
120 |
2x680 |
91kg |
| 3 |
SA200Hx2000 |
2000 |
2100 |
120 |
3x620 |
122kg |
| 4 |
SA200Hx2500 |
2500 |
2600 |
122.5 |
3x785 |
151kg |
| 5 |
SA200Hx3000 |
3000 |
3100 |
120 |
4x715 |
180kg |
Other models include SA250H, SA300H SA400H, SA500H, SA600H, SA800H, SA1000H, please contact us for product brochure.
