Coil Tubing Ram Seals

Item No.: OLWV3000RSCT

Changzhou Meridian provides Inner Coil Tubing Ram Seals as per customer requirements. These seals that are designed to withstand extreme well conditions-even where high percentages of H2S and CO2 are present.

INQUIRY

Description

Changzhou Meridian provides Inner Coil Tubing Ram Seals for Wireline Valve as per customer requirements. These seals that are designed to withstand extreme well conditions-even where high percentages of H2S and CO2 are present. Our special manufacturing process ensures that the rubber and metal plates remain bonded to each other even under the most severe applications.

The Inner Wireline and Coil Tubing Ram Seals can be blind for wire line, slick line and stranded cables operations, line sized from 3/16" up to 1.9".

Coil Tubing Ram Seals

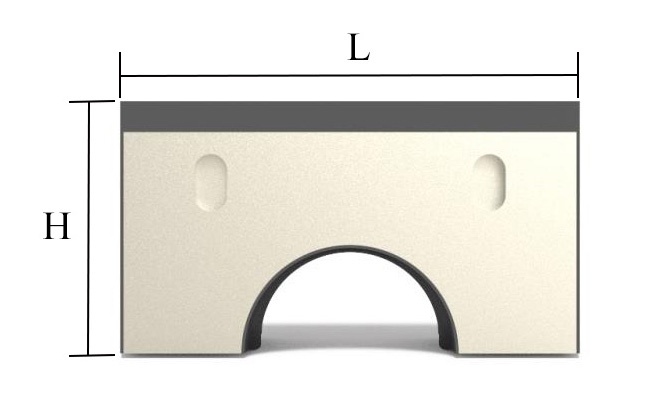

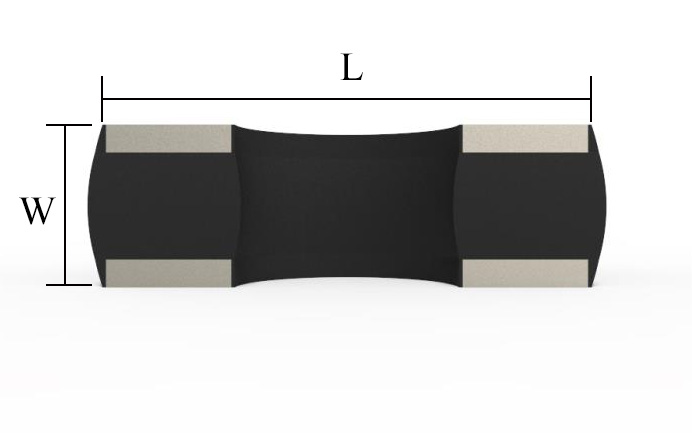

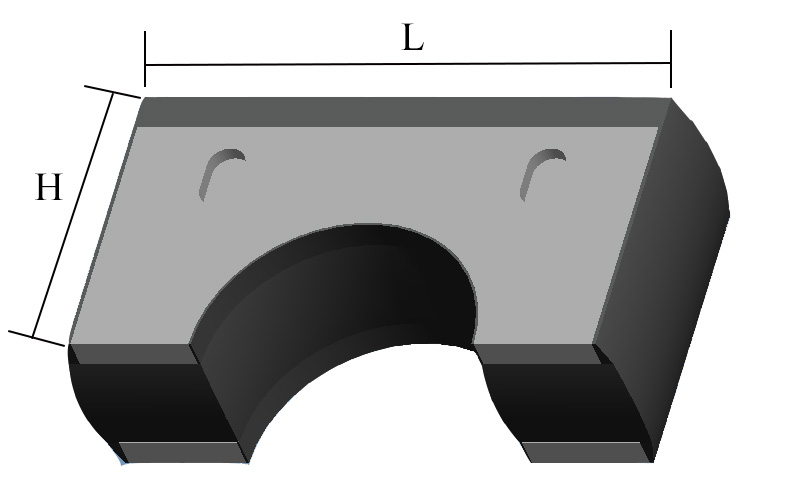

Wireline Valve Size	Coil Tubing Size	Rubber P/N	Dim. L	Dim. H	Dim. W	Nitrile Rubber	Hydrogenated Butadiene-Acrylonitrile Rubber	Fluororubber
3"	1”	OLWV3000RSCT-1000	3.490"	1.840"	1.120"	NBR	HNBR/HSN	FKM/VITON
4"	1”	OLWV4000RSCT-1000	4.980"	2.055"	1.370"	NBR	HNBR/HSN	FKM/VITON
5"	1”	OLWV5000RSCT-1000	5.980"	2.730"	1.480"	NBR	HNBR/HSN	FKM/VITON

All the above-mentioned sizes are just for reference. Any sizes can be available upon request.
