Wireline Valve Seals

Item No.: OLWV3000RSWL
Changzhou Meridian provides Inner Wireline Valve Seals as per customer requirements. These seals that are designed to withstand extreme well conditions-even where high percentages of H2S and CO2 are present.
Description

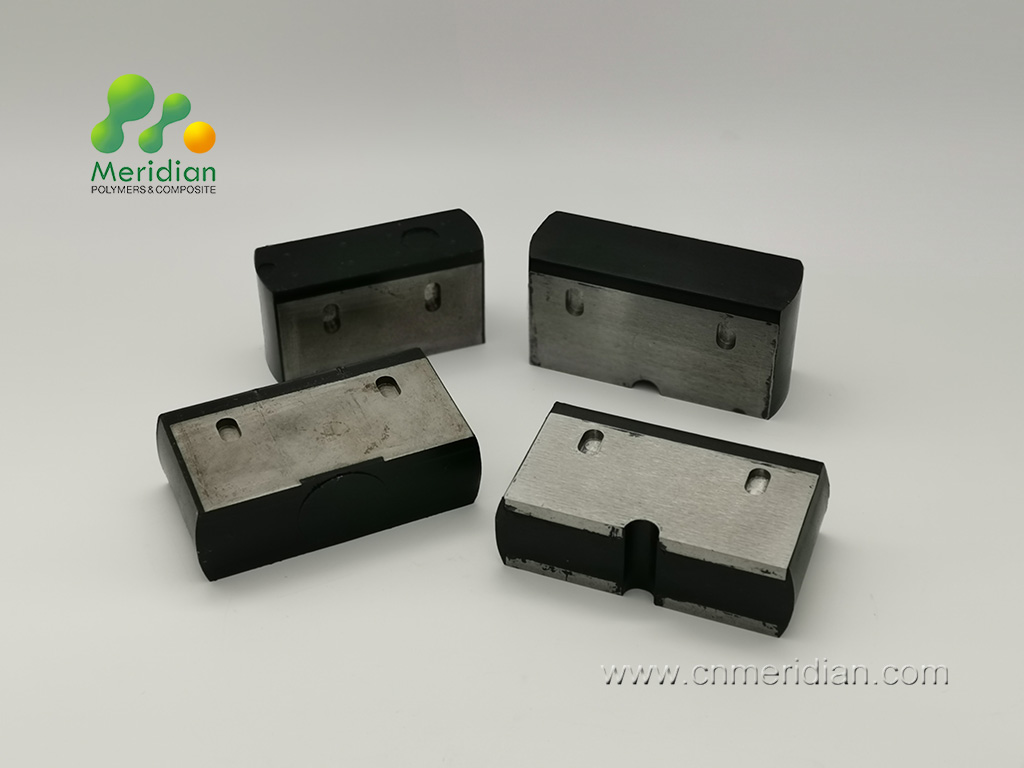

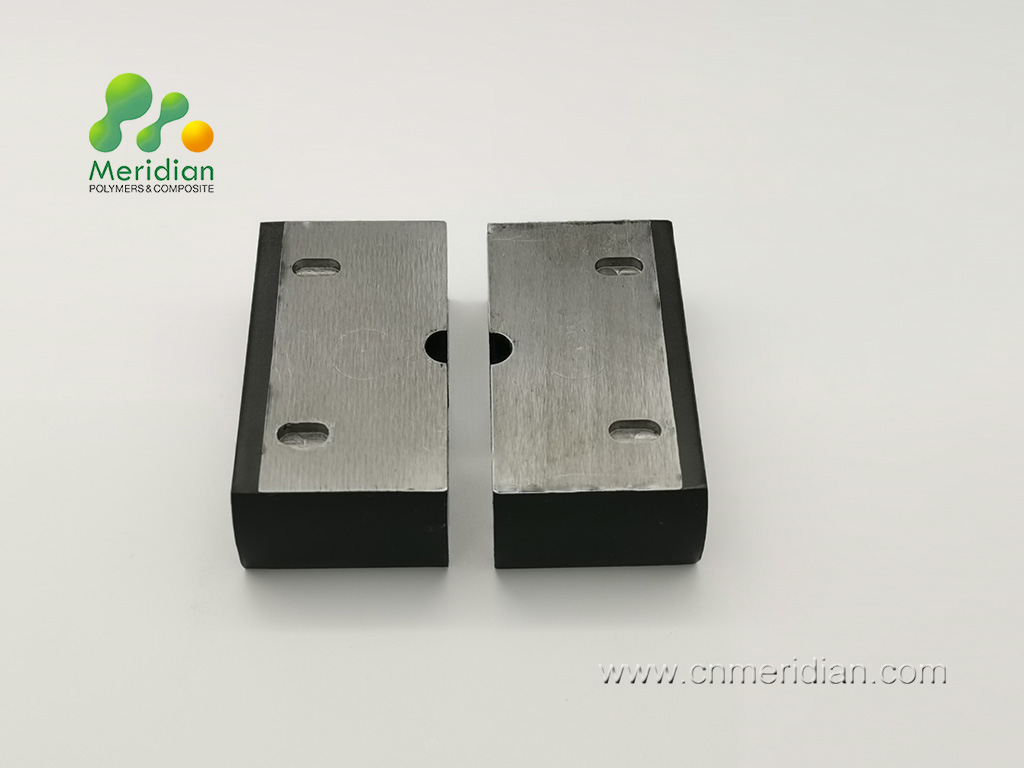

Changzhou Meridian provides Inner Wireline Valve Seals as per customer requirements. These seals that are designed to withstand extreme well conditions-even where high percentages of H2S and CO2 are present. Our special manufacturing process ensures that the rubber and metal plates remain bonded to each other even under the most severe applications.

The Inner Wireline and Coil Tubing Ram Seals can be blind for wire line, slick line and stranded cables operations, line sized from 3/16" up to 1.9".

Standard Inner Ram Seals

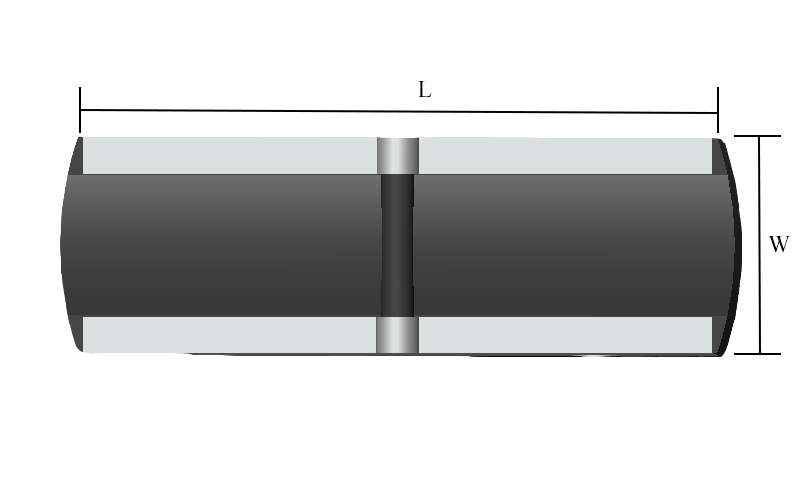

Wireline Valve Size Line Size Rubber P/N Dim. L Dim. H Dim. W Nitrile Rubber Hydrogenated Butadiene-Acrylonitrile Rubber Fluororubber
3" 0-3/8" OLWV3000RSWL-0375 3.490" 1.840" 1.120" NBR HNBR/HSN FKM/VITON
4" 0-3/8" OLWV4000RSWL-0375 4.980" 2.055" 1.370" NBR HNBR/HSN FKM/VITON
5" 0-3/8" OLWV5000RSWL-0375 5.980" 2.730" 1.480" NBR HNBR/HSN FKM/VITON

All the above-mentioned sizes are just for reference. Any sizes can be available upon request.
