Packer Elements

Item No.: Packer Elements-OLPKSL-014

INQUIRY

Description

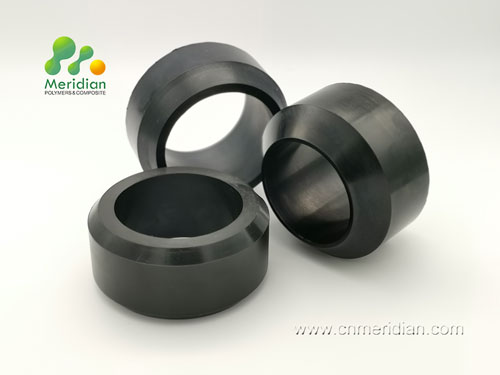

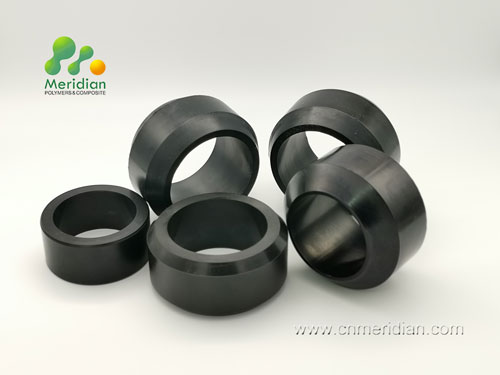

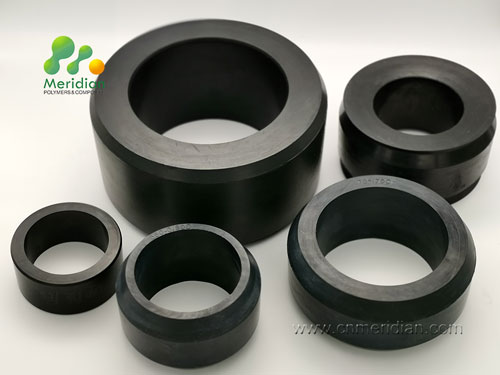

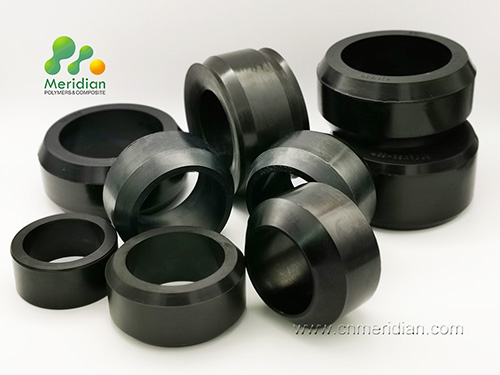

Changzhou Meridian manufacture innovative downhole packer sealing elements to meet customer’s increasing performance requirements for extreme environments, It’s used for the separately exploitation of oil and gas, testing, mud, acidizing and fracturing seal. One middle rubber tube matches with a upper and lower rubber tube. Available materials include Nitrile, FKM, HNBR and etc, We provide the sub-assembly elements, packer element with PEEK backups, and pre-assembled packer elements with custom shrink.

The main advantage of our rubber packer is it can recover with high elastic under high temperature and pressure, which earns a high cost performance comparing to the other same type products, the customized Packer Elements product is welcomed!
● Simple structure
● Convenient for assembling and removing
● Reliable and stable seat locking pressure
● Houlder protection, good stress dispression
● Reasonable compressing distance
● High resistance of locking under high temperature

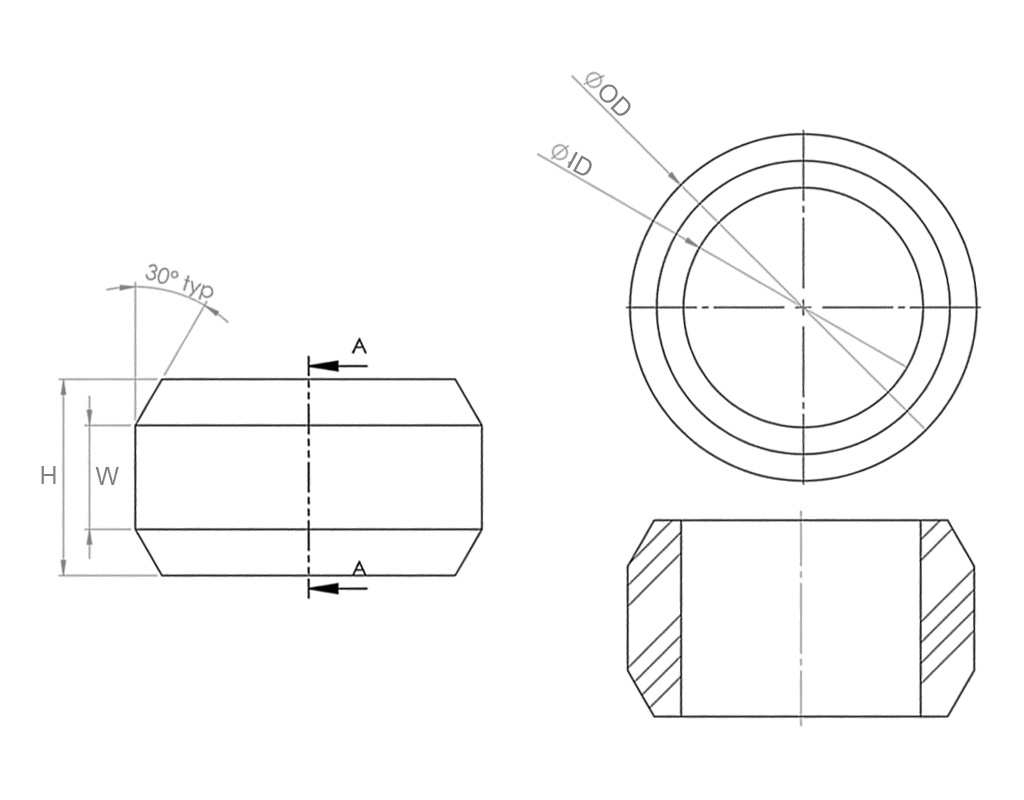

Packer Size	Rubber P/N	Dim. H	Dim. W	Dim. OD	Dim. ID	Nitrile Rubber	Hydrogenated Butadiene-Acrylonitrile Rubber
450	OLPKSL-014-450	1.724"	1"	3.625"	2.764"	NBR	HNBR
450U	OLPKSL-014-450U	1.715"	1.082"	3.594"	2.764"	NBR	HNBR
550	OLPKSL-014-550	2.525"	1.337"	4.460"	3.084"	NBR	HNBR
550O	OLPKSL-014-550O	2.533"	1.311"	4.46"	3.234"	NBR	HNBR
700	OLPKSL-014-700	2.531"	1.366"	5.709"	4.09"	NBR	HNBR
701	OLPKSL-014-701	2.531"	1.366"	5.89"	4.063"	NBR	HNBR

All the above-mentioned sizes are just for reference. Any sizes can be available upon request.
