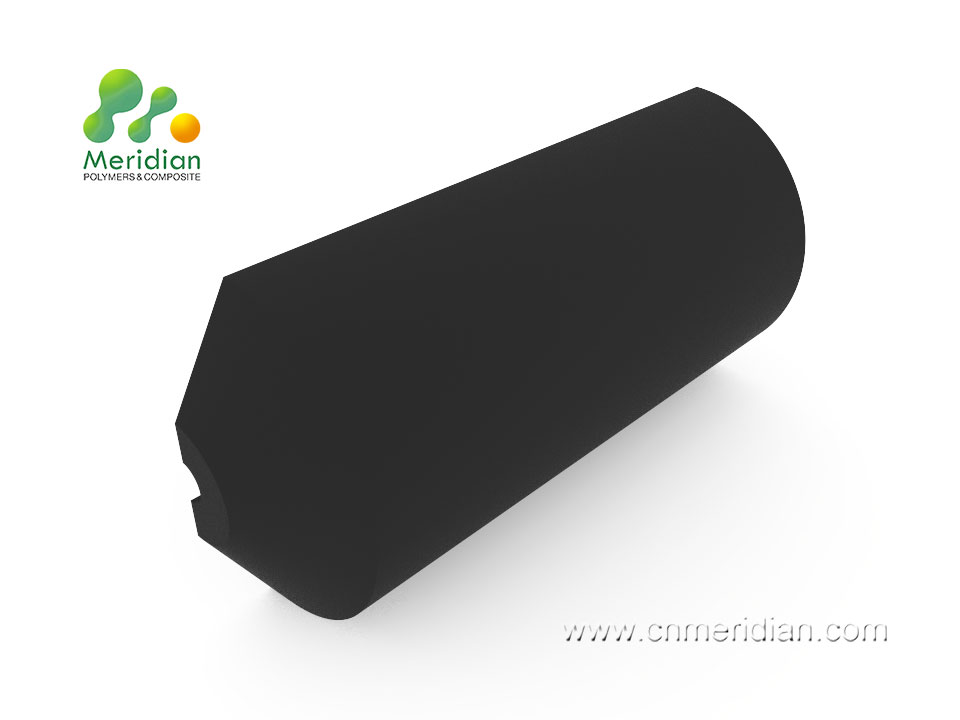

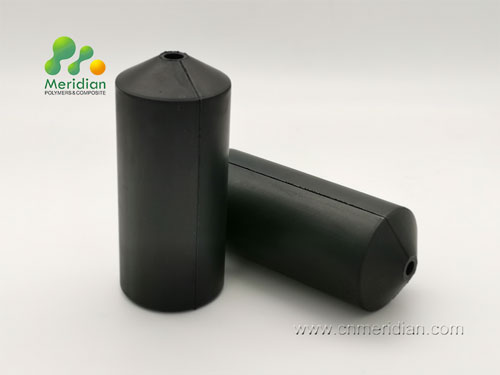

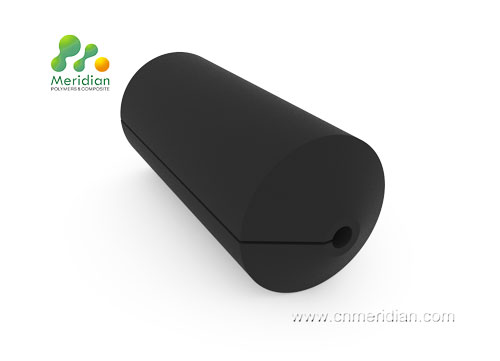

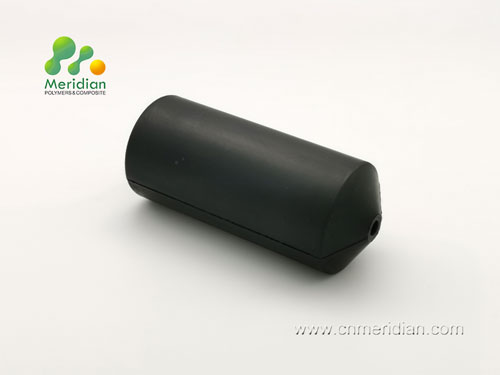

Line Wiper

Item No.: OLPKOF-002

Replacement Line Wiper/Packoff rubber for the packoff, which provides a seal around static wireline to confine well fluids and gases to a well and pressure control stack. We produce the Line Wiper/Packoff rubber are compatible with most wireline sizes.

INQUIRY

Description

Packoff & Line Wiper Rubbers & Rubber Wiper line:

Made in Nitrile rubber or HNBR/HSN
Easy to replace, the line rubbers and guides are easily changed
Available in all Wireline sizes (3 / 16”, 5 / 16”, 7 / 32”, 19/31",15/16”)

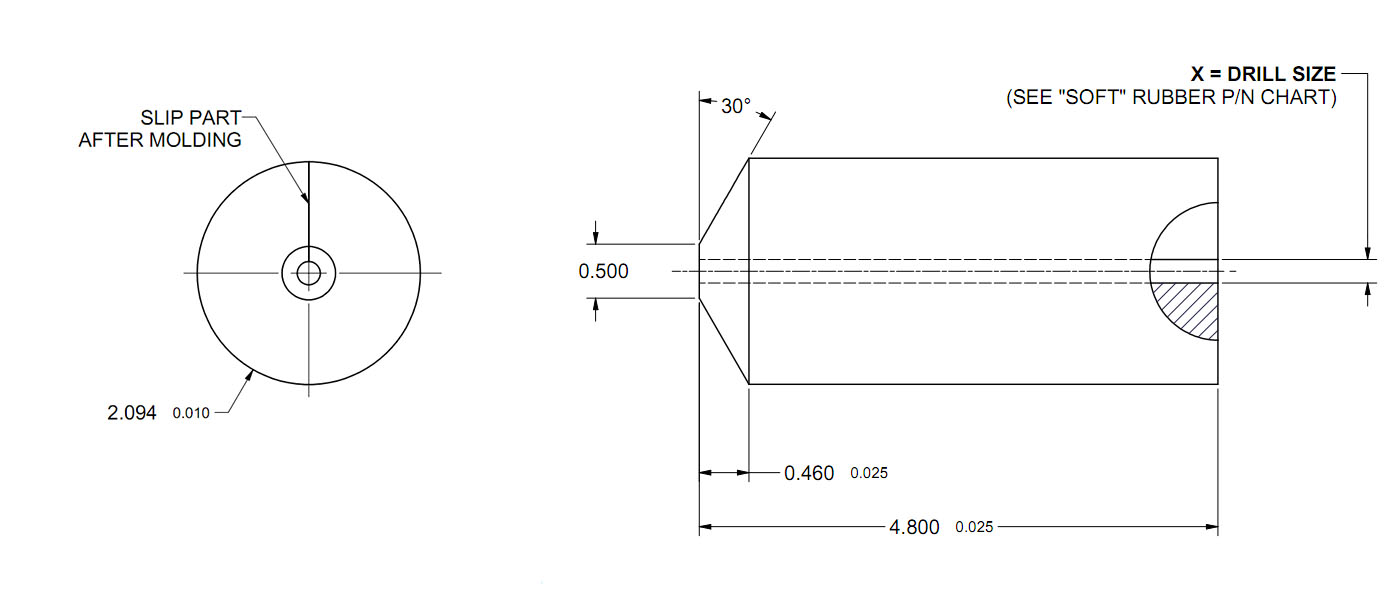

Line Size	X = DRILL SIZE	Rubber P/N	Natural Rubber	Nitrile Rubber	Hydrogenated Butadiene-Acrylonitrile Rubber	Fluororubber
3/16"	7/32"	OLPKOF-002-0188	NR	NBR	HNBR/HSN	FKM/VITON
7/32"	1/4"	OLPKOF-002-0219	NR	NBR	HNBR/HSN	FKM/VITON
1/4"	9/32"	OLPKOF-002-0250	NR	NBR	HNBR/HSN	FKM/VITON
9/32"	5/16"	OLPKOF-002-0281	NR	NBR	HNBR/HSN	FKM/VITON
5/16"	11/32"	OLPKOF-002-0313	NR	NBR	HNBR/HSN	FKM/VITON
3/8"	13/32"	OLPKOF-002-0375	NR	NBR	HNBR/HSN	FKM/VITON
7/16"	15/32"	OLPKOF-002-0438	NR	NBR	HNBR/HSN	FKM/VITON
