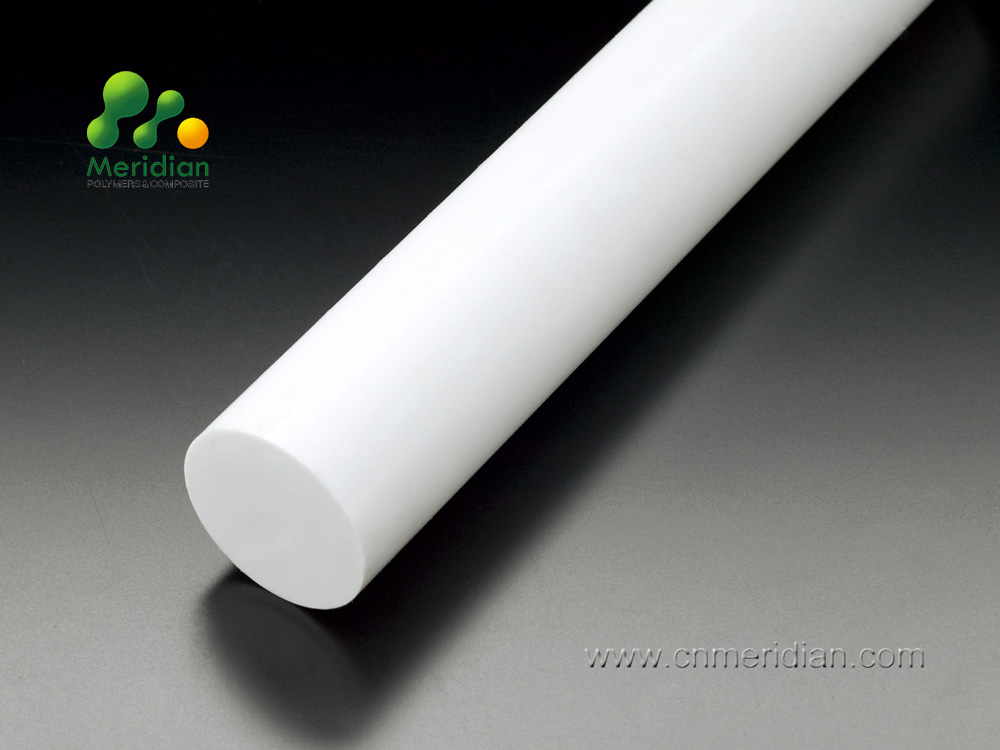

PTFE rod is generally used as machining stock for all kinds of chemical, electrical and mechanical components where the outstanding performance characteristics of PTFE are required. Various fillers are available to modify the properties of PTFE to meet application requirements.
Key Features
• Very good sliding properties.
• Anti-adhesive.
• Very good UV resistance.
• Very good electrical insulation.
• Gamma radiation sensitive.
• Non-melting.
• Extremely good chemical resistance against virtually all media.
Specification
| OD (mm) |
Length (mm) |
Length (mm) |
| 1, 2, 3, 4 |
Continuous(Extrusion) |
| 5, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40 |
1000 |
2000 |
| 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100 |
1000 |
2000 |
| 110, 120, 130, 140, 150, 160, 170, 180, 190, 200 |
1000 |
2000 |
| 210, 220, 230, 240, 250, 260, 270, 280, 300 |
300 |
━ |
| 310, 320, 330, 340, 350, 360, 370, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 490, 500 |
100 |
━ |
Note: All rods can be etched for bonding, and can be mounted on a plywood disk for less waste in machining. Also it can be made with filled (reinforced) PTFE to enhance the performance parameters of PTFE. Materials available for reinforcement are Glass Fiber, Graphite and Bronze.
