Red Natural Rubber Sheeting

INQUIRY

Description

Meridian is able to supply red natural rubber sheeting made of brand-new NR, with/without recycled materials. The red natural rubber sheetings have good physical properties and superior quality. Our technical specification can be conformed to ISO, ASTM, DIN, BS and etc.

CIS-Polyisoprene

Natural rubber is obtained from the gum tree and classified in different grades.

CHEMICAL RESISTANCE of NR

Good resistance to acids, bases and salts.

PROPERTIES of NR

Excellent mechanical properties, such as tensile strength, elasticity and tear resistance.
Wide range of hardness, from 35~90 shore A.
High resilience, excellent dynamic properties and low compression set.
Excellent electrical properties.

Normal colours, hardness and technical specifications we offered
OTHER COLOURS, HARDNESS AND TECHNICAL SPECIFICATIONS CAN BE AVAILABLE UPON REQUEST

Ref	Colours	Specific	Hardness	Tensile	Elongation	Akron abrasion loss
		Gravity	(Shore A)	Strength	(%)
		(g/cm³)		(Mpa)
*PMNRIN/TWL/0/0/40R/SG1.0*	Red	1.05±0.05	40±5	20	700	80 mm³
*PMNRIN/TWL/0/0/40R/SG1.0*	Red	1.05±0.05	40±5	15	500	150 mm³
*PMNRIN/TWL/0/0/40R/SG1.15*	Red	1.15±0.05	40±5	12	450	not recommend
*PMNRIN/TWL/0/0/40R/SG1.25*	Red	1.25±0.05	40±5	10	400	not recommend
*SBRIN/TWL/0/0/40R/SG1.5*	Red	1.50±0.05	80±5	4	200	not recommend

Working Temperature range: -40°C to +110°C

Product Dimensions

Thickness	Width	Length
1mm~40mm	1000mm~2000mm	5m~20m

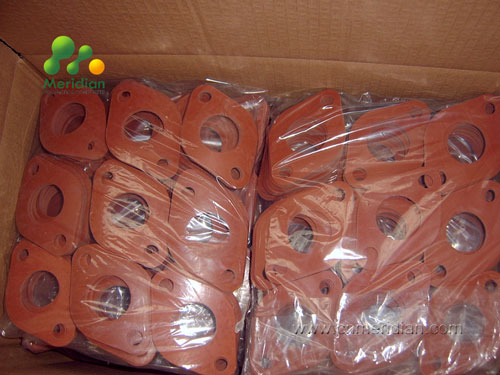

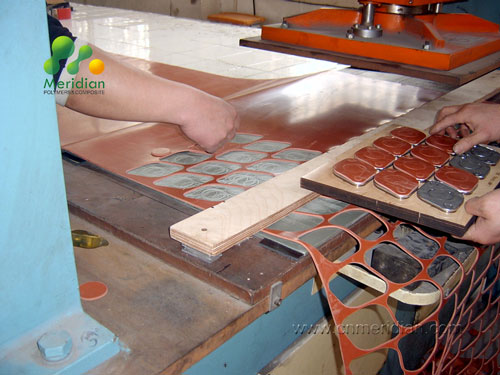

We can supply sheet cut into gasket, strips, in different widths, according to your requirements.
